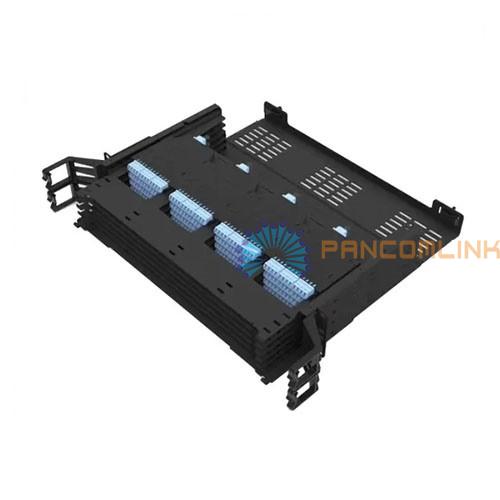

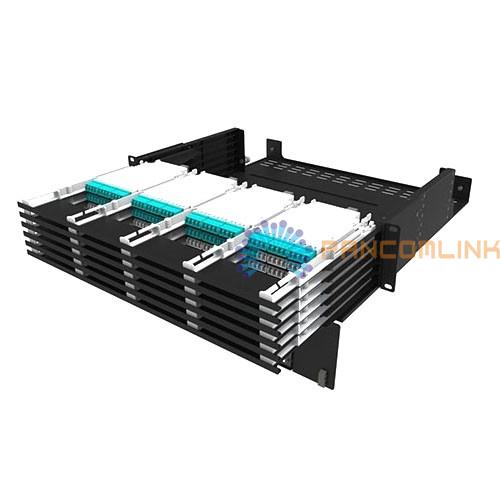

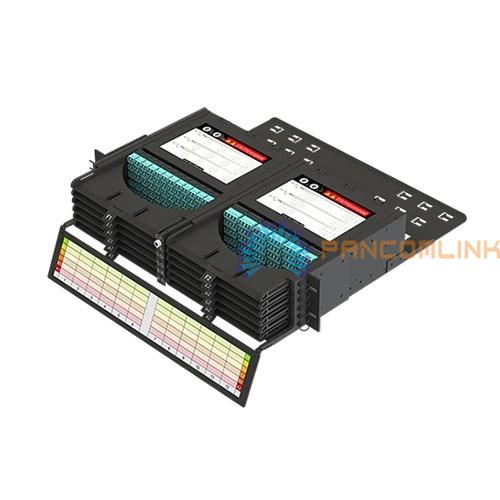

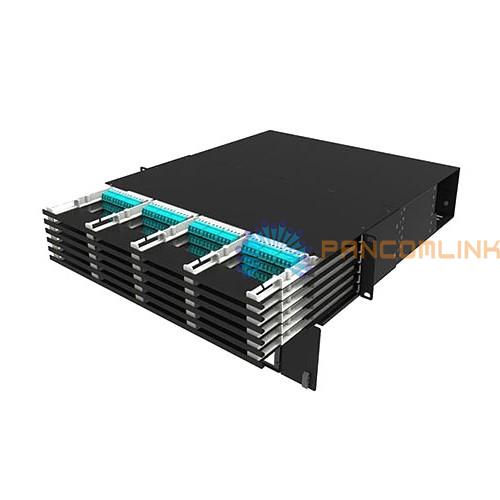

2U 19′ Rack Mount Ultra High Density MTP/MPO Enclosure with Cassettes

Description

● MTP/MPO Ultra High Density Enclosure with Cassettes

PancomLink series enclosures are available in 1U, 2U and 4U heights and are designed to provide high-density, low dB loss connections and the recessed sliding tilt down drawer allows easy access to the internal connections. The RSD Series is extremely versatile accommodating LC, SC, MTRJ, MTP or ST couplers and is ideal for structured cabling environments, open racks in telecom closets or any areas where the front acrylic glass protection is needed.
• 1U configuration for up to 72 duplex LC Ports.

• 2U configuration for up to 144 duplex LC Ports.

• 4U configuration for up to 216 duplex LC Ports.

MTP/MPO cassettes are equipped with standard MTP/MPO connectors to be deployed in an ODF (optical distribution frame) for high-density MDA (main distribution area) and EDA (equipment distribution area) in data centers.

MTP/MPO system is a perfect solution suited for high-density applications. MTP/MPO products are designed to be space-saving and easy to manage. High Density Fiber Cassettes come in multiple variations, allowing you to connect different generations of equipment (10Gb, 40Gb, 100/120Gb), and giving you the flexibility to adapt as your technology changes. Installation is simple, with the cassettes being easily installed or removed using push/pull tabs to lock or unlock them from the panel; no tools required. Management is a breeze with an optional rear-mounting cable management bracket that allows you to rout your cabling neatly and safely. A fold-down door panel is featured on the front of the unit, and protects your connections, while rotating out of the way to provide full access. The door panel can also be removed altogether for installations where constant access is preferred.

2U Rack Mount HD Fiber Enclosure supports maximum 288 fibers. It is mainly installed in server cabinet with capability of housing 12pcs high-density easy-plug MTP/MPO to LC fiber panels or cassettes. This solution contributes to greater network availability that especially ideal for connection and cable management of Data Center MDA, IDA, HDA and other optical fiber backbones. It can be pre-terminated with MTP/MPO switching modules or MTP/MPO adapter front panels to achieve interconnect and cross-connect of backbone cables and active devices.

● Features:
► Standard EIA 19'' rack rails ;
► Rivet buckle lockable design avoid sliding;
► Clear ID marked and easy to locate;
► Improving space to make sure bending rate of fiber.

19“Rack Mount to be Convenient and Flexible

2U Ultra High-Density Fiber Enclosure loaded with cassettes are completely set in accordance with EIA standards, which is applicable to all cabinets conforming to the relevant standards.

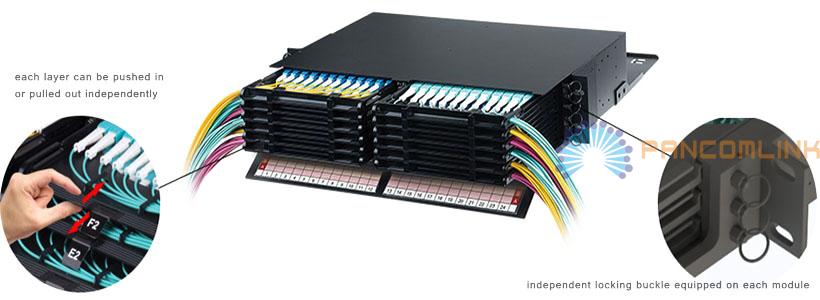

Layered and Shiftable Drawers with Rivet Buckle Lockable Design

The drawers are stacking installed while each layer can be pushed in or pulled out independently, which also help separate cables to avoid twining. There is independent locking buckle equipped on each module to avoid sliding. Each layer can be pushed in or pulled out independently.

● Application:

►Data center, SAN system etc, pre-terminated installation;
►High density fiber cabling system;
►Fast cabling system;
►Backbone network;

►High integration equipment and device.

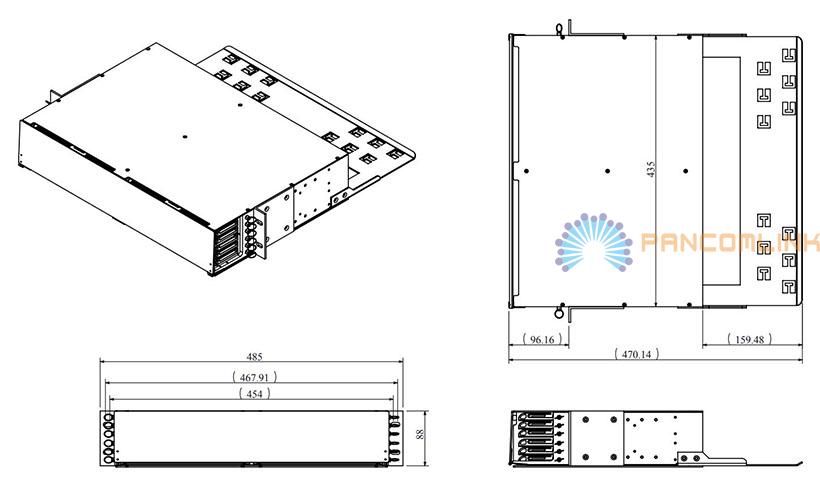

● Specification:

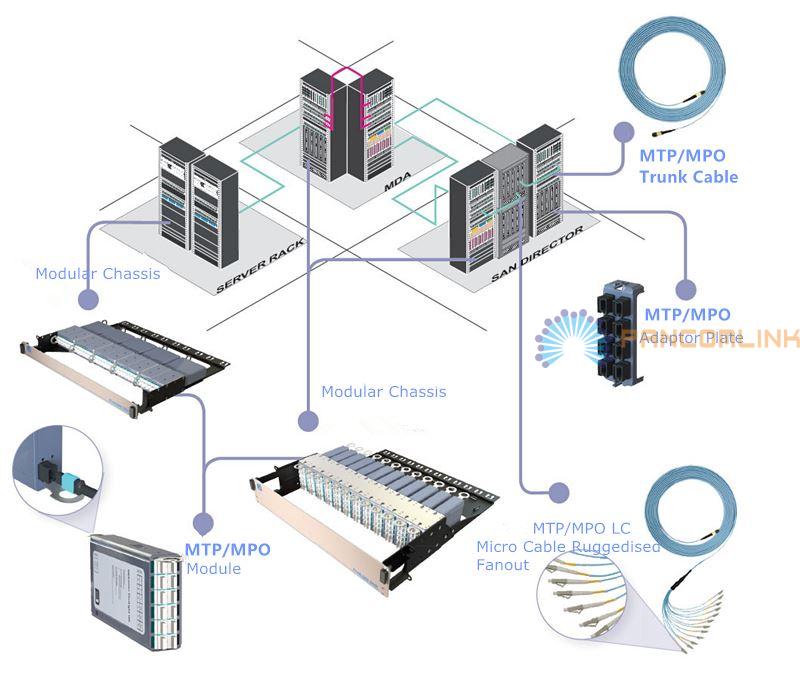

● The Application of High Density MTP/MPO Cabling System:
