Description

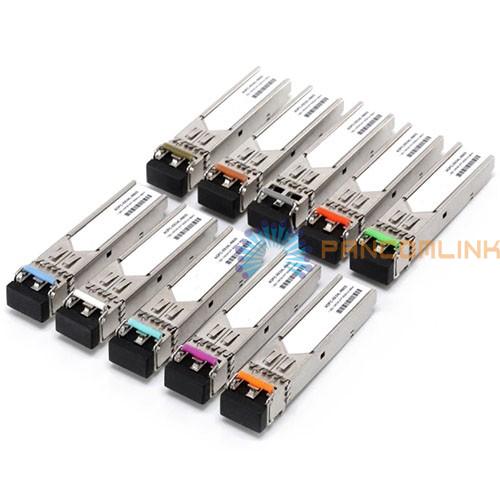

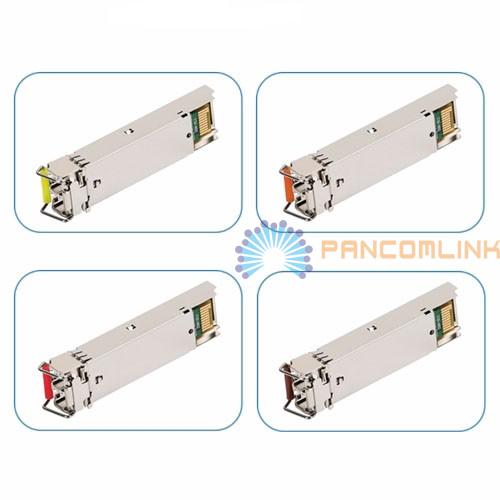

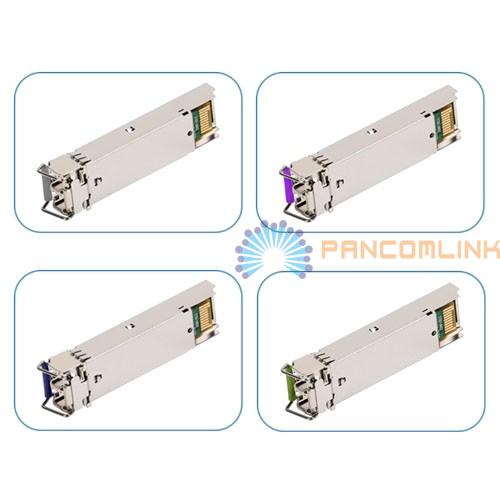

● 2.5G SFP Optic Transceiver:
2.5G SFP is a series of optical transceiver modules designed for use in 2x/1x Fibre Channel and Gigabit Ethernet . They are compliant with the SFP+ MSA. Digital diagnostics functions are available.
● Features:
● Data-rate of 2.5Gbps operation
● Single +3.3V power supply
● Built-in digital diagnostic functions
● DWDM 100GHz ITU Grid C Band Available
● Transmission distance up to 120km over SMF
● Can be used with single fiber DWDM system or dual fiber DWDM system
● Compliant with SFP MSA, FC-PI 13.0, IEEE Std 802.3, RoHS-6
● Operating Case Temperature: Standard: 0~70°C; Extended: -20~85°C; Industrial: -40~85°C
● Application:
● Fast Ethernet
● Gigabit Ethernet
● 2x/1x Fibre Channel
● SONET/SDH OC-3/STM-1
● SONET/SDH OC-12/STM-4
● SONET/SDH OC-24/STM-8
● DWDM Networks
● Order Information:
|
2.5Gbps DWDM SFP Transceiver |
||||||||
|
Description |
Data Rate |
Wavelength |
Distance |
Fiber |
Tx Power (dBm) |
Rx Sens (dBm) |
Interface |
DDM |
|
2.5G-DWDM-SFP-XXnm-40KM |
2.5G |
1528.77~1563.86nm |
40km |
SMF |
-5～0 |
-22 |
Duplex LC |
Yes |
|
2.5G-DWDM-SFP-XXnm-80KM |
2.5G |
1528.77~1563.86nm |
80km |
SMF |
-2～3 |
-24 |
Duplex LC |
Yes |
|
2.5G-DWDM-SFP-XXnm-120KM |
2.5G |
1528.77~1563.86nm |
120km |
SMF |
0～5 |
-32 |
Duplex LC |
Yes |
|
Operating Temperature |
0 to 70℃ |
|||||||
