Description
● 2.5G SFP Optic Transceiver:
2.5G SFP is a series of optical transceiver modules designed for use in 2x/1x Fibre Channel and Gigabit Ethernet. They are compliant with the SFP+ MSA. Digital diagnostics functions are available.
● Features:
● Simplex SC or LC Interface
● Single +3.3V power supply
● Supports data rates up to 2.67Gb/s
● Built-in digital diagnostic functions

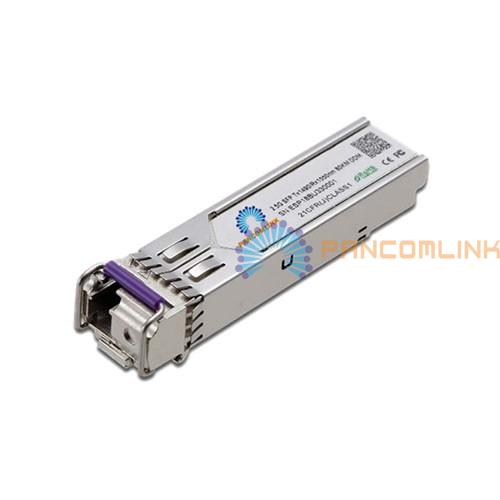

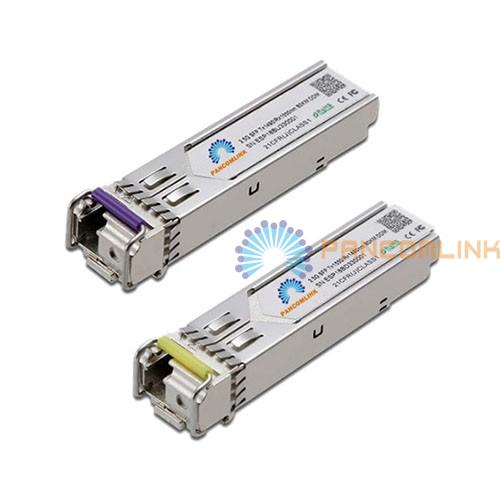

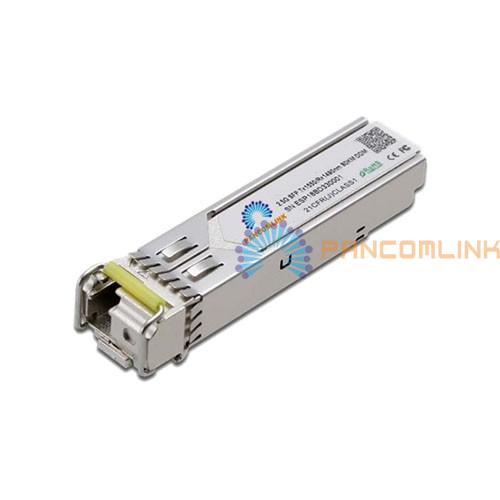

● Single Fiber BIDI SFP Optical Transceiver
● Transmission distance up to 120km over SMF
● Compliant with SFP+ MSA, IEEE Std 802.3, FC-PI 13.0, RoHS-6
● Operating Case Temperature: Standard: 0~70°C; Extended: -20~85°C ;Industrial: -40~85°C
● Application:
● 2X/1X FC
● 1000Base Ethernet
● SDH/SONET
● Storage Area Network (SAN)
● Other Optical Link
● Order Information:
|
2.5Gbps BIDI SFP Transceiver |
||||||||
|
Description |
Date Rate |
Wavelength (nm) |
Distance |
Fiber |
Tx Power (dBm) |
Rx Sens (dBm) |
Interface |
DDM |
|
2.5G-BIDI-SFP-Tx1310/Rx1550nm-3KM |
2.5G |
Tx1310/Rx1550 |
3km |
SMF |
-15～-8 |
-21 |
Simplex LC/SC |
Yes |
|
2.5G-BIDI-SFP-Tx1550/Rx1310nm-3KM |
2.5G |
Tx1550/Rx1310 |
3km |
SMF |
-15～-8 |
-21 |
Simplex LC/SC |
Yes |
|
2.5G-BIDI-SFP-Tx1310/Rx1550nm-20KM |
2.5G |
Tx1310/Rx1550 |
20km |
SMF |
-9～-3 |
-24 |
Simplex LC/SC |
Yes |
|
2.5G-BIDI-SFP-Tx1550/Rx1310nm-20KM |
2.5G |
Tx1550/Rx1310 |
20km |
SMF |
-9～-3 |
-24 |
Simplex LC/SC |
Yes |
|
2.5G-BIDI-SFP-Tx1310/Rx1550nm-40KM |
2.5G |
Tx1310/Rx1550 |
40km |
SMF |
-3～0 |
-24 |
Simplex LC/SC |
Yes |
|
2.5G-BIDI-SFP-Tx1550/Rx1310nm-40KM |
2.5G |
Tx1550/Rx1310 |
40km |
SMF |
-3～0 |
-24 |
Simplex LC/SC |
Yes |
|
2.5G-BIDI-SFP-Tx1490/Rx1550nm-60KM |
2.5G |
Tx1490/Rx1550 |
60km |
SMF |
-4～-1 |
-28 |
Simplex LC/SC |
Yes |
|
2.5G-BIDI-SFP-Tx1550/Rx1490nm-60KM |
2.5G |
Tx1550/Rx1490 |
60km |
SMF |
-4～-1 |
-28 |
Simplex LC/SC |
Yes |
|
2.5G-BIDI-SFP-Tx1490/Rx1550nm-80KM |
2.5G |
Tx1490/Rx1550 |
80km |
SMF |
-3～0 |
-28 |
Simplex LC/SC |
Yes |
|
2.5G-BIDI-SFP-Tx1550/Rx1490nm-80KM |
2.5G |
Tx1550/Rx1490 |
80km |
SMF |
-3～0 |
-28 |
Simplex LC/SC |
Yes |
|
2.5G-BIDI-SFP-Tx1490/Rx1550nm-100KM |
2.5G |
Tx1490/Rx1550 |
100km |
SMF |
>0 |
-29 |
Simplex LC/SC |
Yes |
|
2.5G-BIDI-SFP-Tx1550/Rx1490nm-100KM |
2.5G |
Tx1550/Rx1490 |
100km |
SMF |
>0 |
-29 |
Simplex LC/SC |
Yes |
|
2.5G-BIDI-SFP-Tx1490/Rx1550nm-120KM |
2.5G |
Tx1490/Rx1550 |
120km |
SMF |
>1 |
-30 |
Simplex LC/SC |
Yes |
|
2.5G-BIDI-SFP-Tx1550/Rx1490nm-120KM |
2.5G |
Tx1550/Rx1490 |
120km |
SMF |
>1 |
-30 |
Simplex LC/SC |
Yes |
|
Operating Temperature |
0 to 70℃ |
|||||||
