Description
● Planar Lightwave Circuit (PLC) Splitter:

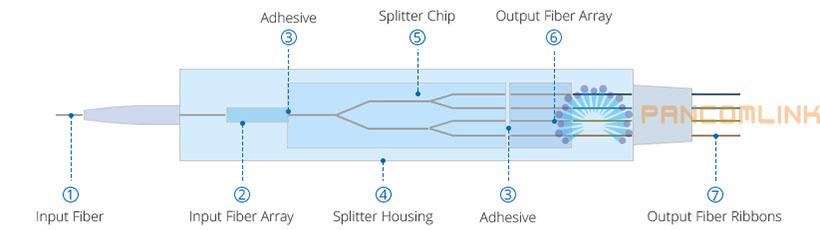

Planar Lightwave Circuit (PLC) Splitter is a type of optical power management device that is fabricated using silica optical waveguide technology to distribute optical signals from Central Office to multiple premise locations. With the features of small size, wide range of operating wavelength, stable reliability and good uniformity, It’s widely used in passive optical networks (EPON, BPON, GPON, etc.) connects the central office and the terminal device and implements the splitting of the optical signal.

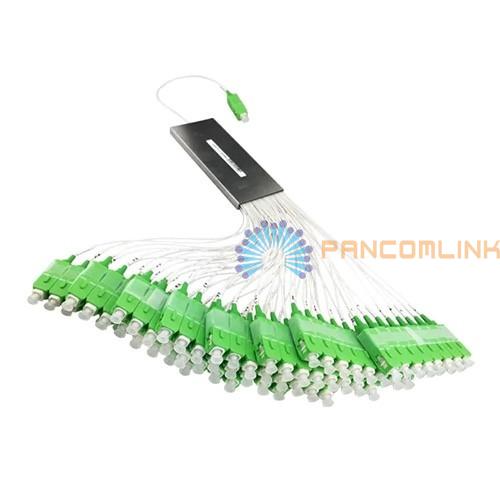

Blockless PLC Splitter has stronger fiber protection than bare fiber splitter, which is a miniaturization result of cassette splitter. It's mainly used for various connection and distribution boxes or network cabinets. Blockless PLC Splitter can integrate multiple functions onto a single chip to significantly reduce size and cost. It is widely used in PON networks to realize optical signal power management.
PanconLink‘s Blockless PLC Splitter family has 1x2, 1x4, 1x6, 1x8, 1x16, 1x24, 1x32, 1x64, 1x128, 2x2, 2x4, 2x8, 2x16, 2x32, 2x64, 2x128 PLC splitter, with specifications that are tailored for different applications and markets. Wide bandwidth, compact size. All products meets, ROHS, GR-1209-CORE-2001 and GR-1221-CORE-1999.
● Features:
►900um fiber, Lose tube;
►TU G.657A1 for fiber input/output;
►Compact design, suitable for installation in optical equipment;
►High reliability and stability, Telecordia GR-1221/1209 compliant;
►Operating bandwidth: 1260-1650nm;
►Wide Operating Temperature: -40 - 85°C, support industry standard applications.
● Application:
►Optical Signal Distribution;
►Data Communications LAN and CATV System;
►FTTH Network/ Deployment;
►Measuring System and Laser System.
● Specification:
|
1xN PLC Splitter Specification |
|||||||
|
Operating Wavelength (nm) |
1260~1650 |
||||||
|
Fiber Type |
G657A1 or as per customers' order |
||||||
|
Port Configuration |
1x2 |
1x4 |
1x8 |
1x16 |
1x32 |
1x64 |
1x128 |
|
Insertion Loss (dB) |
3.8/4.0 |
7.1/7.3 |
10.2/10.5 |
13.5/13.7 |
16.5/16.9 |
20.5/21.0 |
23.8/24.2 |
|
Loss Uniformity (dB) |
0.4 |
0.6 |
0.8 |
1.2 |
1.5 |
2.0 |
2.5 |
|
Polarization Dependent Loss(dB) |
0.2 |
0.2 |
0.2 |
0.25 |
0.3 |
0.35 |
0.4 |
|
Wavelength Dependent Loss(dB) |
0.3 |
0.3 |
0.3 |
0.5 |
0.5 |
0.5 |
0.5 |
|
Temperature Dependent Loss (dB) |
0.4 |
0.4 |
0.4 |
0.5 |
0.5 |
0.5 |
0.5 |
|
Return Loss (dB) |
55/50 |
||||||
|
Directivity (dB) |
≥ 55 |
||||||
|
Operating/Storage Temperature (℃) |
-40 to +85 |
||||||
|
|
|||||||
|
2xN PLC Splitter Specification |
|||||||
|
Operating Wavelength (nm) |
1260~1650 |
||||||
|
Fiber Type |
G657A1 or as per customers' order |
||||||
|
Port Configuration |
2x2 |
2x4 |
2x8 |
2x16 |
2x32 |
2x64 |
2x128 |
|
Insertion Loss (dB) |
4.0 |
7.6 |
11 |
14.4 |
17.5 |
21.0 |
24.5 |
|
Loss Uniformity (dB) |
0.6 |
1.0 |
1.2 |
1.5 |
1.8 |
2.2 |
2.5 |
|
Polarization Dependent Loss (dB) |
0.2 |
0.2 |
0.3 |
0.3 |
0.35 |
0.4 |
0.4 |
|
Wavelength Dependent Loss (dB) |
0.3 |
0.4 |
0.5 |
0.5 |
0.5 |
0.5 |
0.5 |
|
Temperature Dependent Loss (dB) |
0.4 |
0.4 |
0.4 |
0.5 |
0.5 |
0.5 |
0.5 |
|
Return Loss (dB) |
55/50 |
||||||
|
Directivity (dB) |
≥ 55 |
||||||
|
Operating/Storage Temperature (℃) |
-40 to +85 |
||||||
