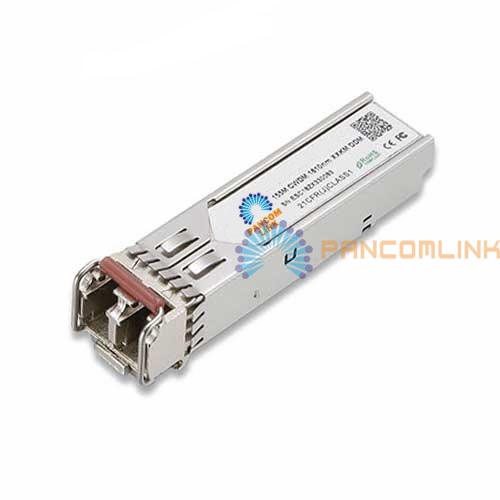

155M CWDM SFP LC Optic Transceiver 40/80/120/160KM

Description

● 155M SFP Optic Transceiver:

155M~1.25G SFP transceivers are the most common SFP modules, which operating at 850nm, 1310nm, 1550nm wavelengths over dual fibers.

BIDI SFP transceivers are operating over single Single Mode Fiber (SMF).

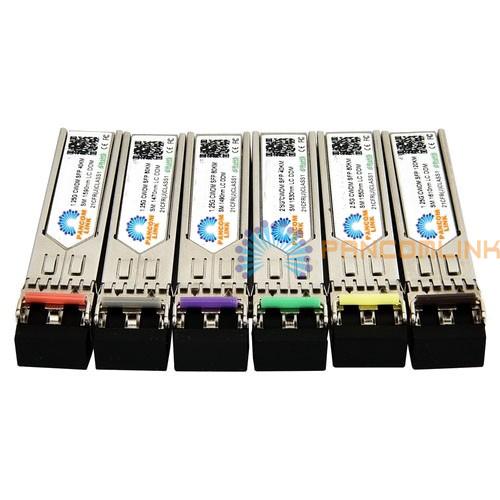

CWDM SFP small form-factor pluggable (SFP) is a compact optical transceiver used in optical communications for both telecommunication and data communications applications at 1270-1610nm CWDM wavelengths over Single Mode Fiber (SMF).

DWDM SFP is a series of optical transceiver modules operating at DWDM C-band (100GHz channel spacing) wavelengths over Single Mode Fiber (SMF).

● Features:

● Data-rate of 155Mbps operation

● 8 CWDM DFB wavelengths laser and APD photodetector for 160KM transmission

● +3.3V single power supply

● Compliant with SFP MSA and SFF-8472 with duplex LC receptacle

● Compatible with SONET OC-3 LR-1

● Compatible with RoHS

● Digital Diagnostic Monitoring: Internal Calibration or External Calibration

● Operating Case Temperature: Standard: 0~70°C; Extended: -20~85°C; Industrial: -40~85°C

● Application:

● Gigabit Ethernet

● Fiber Channel

● Switch to Switch interface

● Switched backplane applications

● Router/Server interface

● Other optical transmission systems

● Order Information:
