Description

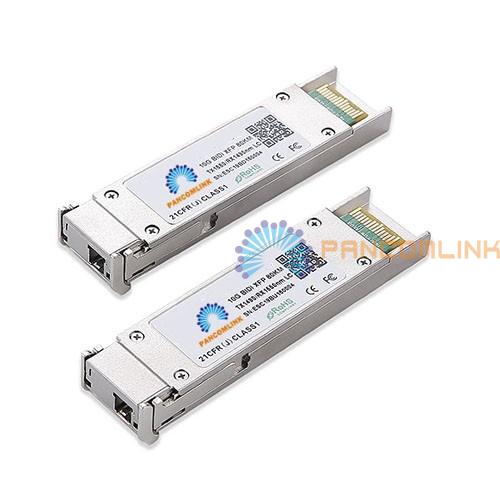

● 10G BIDI XFP Optic Transceiver:
10G XFP Dual Fiber Optical Transceiver is a high performance, cost effective modules for serial optical data communications applications specified for signal rates of 9.95Gb/s to 11.3Gb/s. It is fully compliant to XFP MSA Rev 4.5. are designed for single mode fiber and multi mode fiber and operates at a nominal wavelength of 850/1310/1550nm, XFP SR, SFP LR, XFP ER, XFP ZR and XFP EZR. The transmitter section adopted 850nm a vertical cavity surface emitting (VCSEL) laser or uncooled directly modulated 1310nm distributed feedback laser (DFB) or EML cooled laser 1550nm. The receiver section uses PIN photodetector for low dark current and excellent responsivity or APD high sensitivity receiver.
10G BiDi XFP is a series of optical transceiver modules operating over Single-Mode Fiber (SMF). They are designed for use in 10-Gigabit Ethernet, 10G Fibre Channel, and SONET/SDH OC-192/STM-64 links, compliant with the XFP MSA. Digital diagnostics functions are available. The optical transceivers are RoHS compliant.
● Features:
• Simplex LC Interface
• Built-in digital diagnostic functions
• 1270nm&1330nm or 1490nm&1570nm
• Up to 11.3Gbps Bi-directional Data Links
• Single Fiber BIDI XFP Optical Transceiver
• Transmission distance up to 80km over SMF
• Supports Multi Protocol 8.5Gb/s, 9.95Gb/s to 11.3Gb/s bit rates
• Operating Case Temperature: Standard: 0~70°C; Extended: -20~85°C; Industrial: -40~85°C
● Application:
• CWDM Networks
• SONET OC-192 / SDH STM-64
• OTN ITU-T G.709
• 10GBASE-SR/LR/ER/ZR Ethernet
• 10X/8X/4X/2X/1X Fibre Channel
● Order Information:
|
10Gbps BIDI XFP Transceiver |
||||||||
|
Description |
Data Rate |
Wavelength (nm) |
Distance |
Fiber |
Tx Power (dBm) |
Rx Sens (dBm) |
Interface |
DDM |
|
10G-BIDI-XFP-Tx1270/Rx1330nm-10KM |
10G |
Tx1270/Rx1330 |
10km |
SMF |
-6～-1 |
-14 |
Simplex LC |
Yes |
|
10G-BIDI-XFP-Tx1330/Rx1270nm-10KM |
10G |
Tx1330/Rx1270 |
10km |
SMF |
-6～-1 |
-14 |
Simplex LC |
Yes |
|
10G-BIDI-XFP-Tx1270/Rx1330nm-20KM |
10G |
Tx1270/Rx1330 |
20km |
SMF |
-2～3 |
-14 |
Simplex LC |
Yes |
|
10G-BIDI-XFP-Tx1330/Rx1270nm-20KM |
10G |
TX1330/Rx1270 |
20km |
SMF |
-2～3 |
-14 |
Simplex LC |
Yes |
|
10G-BIDI-XFP-Tx1270/Rx1330nm-40KM |
10G |
Tx1270/Rx1330 |
40km |
SMF |
-3～0 |
-16 |
Simplex LC |
Yes |
|
10G-BIDI-XFP-Tx1330/Rx1270nm-20KM |
10G |
TX1330/Rx1270 |
40km |
SMF |
-3～0 |
-16 |
Simplex LC |
Yes |
|
10G-BIDI-XFP-Tx1270/Rx1330nm-60KM |
10G |
Tx1270/Rx1330 |
60km |
SMF |
1～5 |
-20 |
Simplex LC |
Yes |
|
10G-BIDI-XFP-Tx1330/Rx1270nm-60KM |
10G |
Tx1330/Rx1270 |
60km |
SMF |
1～5 |
-20 |
Simplex LC |
Yes |
|
10G-BIDI-XFP-Tx1490/Rx1550nm-80KM |
10G |
Tx1490/Rx1550 |
80km |
SMF |
2～7 |
-22 |
Simplex LC |
Yes |
|
10G-BIDI-XFP-Tx1550/Rx1490nm-80KM |
10G |
Tx1550/Rx1490 |
80km |
SMF |
2～7 |
-22 |
Simplex LC |
Yes |
|
Operating Temperature |
0 to 70℃ |
|||||||
