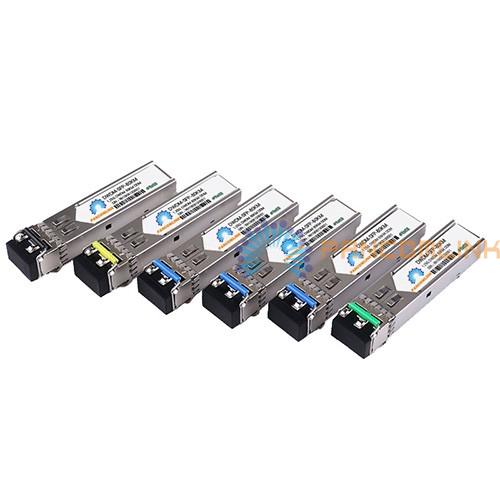

1.25G DWDM SFP XXnm 120KM LC Optic Transceiver

Description

● 1.25G SFP Optic Transceiver:

155M~1.25G SFP transceivers are the most common SFP modules, which operating at 850nm, 1310nm, 1550nm wavelengths over dual fibers.

BIDI SFP transceivers are operating over single Single Mode Fiber (SMF).

CWDM SFP small form-factor pluggable (SFP) is a compact optical transceiver used in optical communications for both telecommunication and data communications applications at 1270-1610nm CWDM wavelengths over Single Mode Fiber (SMF).

DWDM SFP is a series of optical transceiver modules operating at DWDM C-band (100GHz channel spacing) wavelengths over Single Mode Fiber (SMF).

● Features:

●Data-rate of 1.25Gbps operation

● RoHS-6  compliant

● Compliant with SFP MSA

● Compliant with  FC-PI 13.0

● Compliant with IEEE Std 802.3

● Single +3.3V power supply

● Built-in digital diagnostic functions

● DWDM 100GHz ITU Grid C Band Available

● Transmission distance up to 120km over SMF

● Can be used with single fiber DWDM system or dual fiber DWDM system

● Operating Case Temperature: Standard: 0~70°C; Extended: -20~85°C; Industrial: -40~85°C

● Application:

● Fast Ethernet

● Gigabit Ethernet

● 1X Fibre Channel

● SONET/SDH OC-3/STM-1

● SONET/SDH OC-12/STM-4

● SONET/SDH OC-24/STM-8

● DWDM Networks

● Order Information:
