Description
● 1.25G SFP Optic Transceiver:
155M~1.25G SFP transceivers are the most common SFP modules, which operating at 850nm, 1310nm, 1550nm wavelengths over dual fibers.

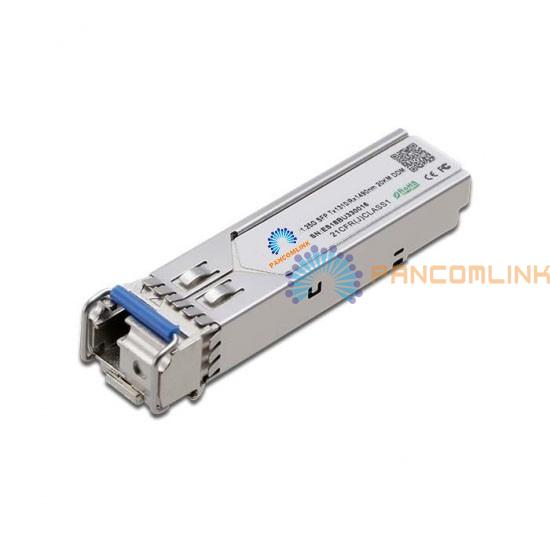

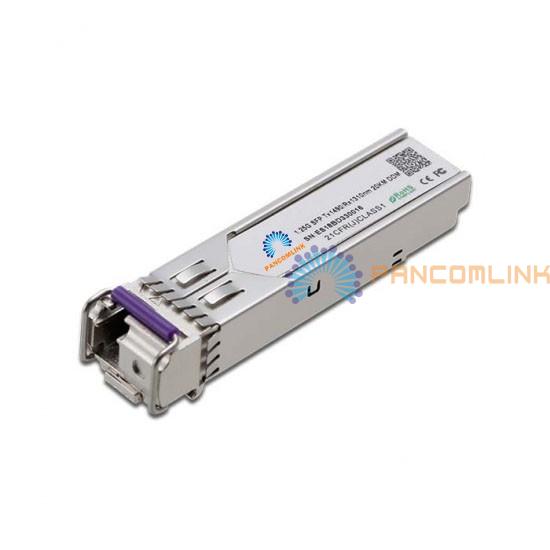

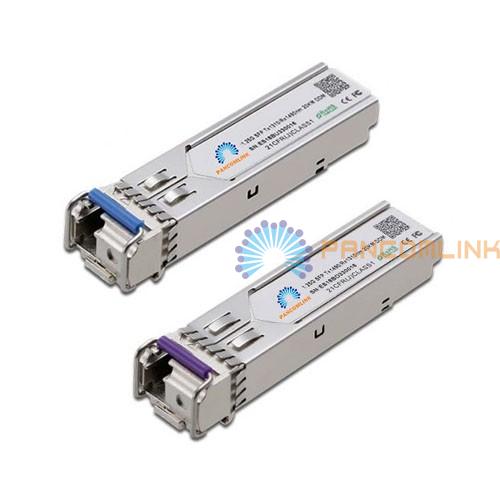

BIDI SFP transceivers are operating over Single Mode Fiber (SMF).
CWDM SFP small form-factor pluggable (SFP) is a compact optical transceiver used in optical communications for both telecommunication and data communications applications at 1270-1610nm CWDM wavelengths over Single Mode Fiber (SMF).
DWDM SFP is a series of optical transceiver modules operating at DWDM C-band (100GHz channel spacing) wavelengths over Single Mode Fiber (SMF).
● Features:
● Data-rate of 1.25Gbps operation
● Simplex SC or LC Interface
● Single +3.3V power supply
● Built-in digital diagnostic functions
● Transmission distance up to 150km over SMF
● Compliant with SFP MSA, IEEE Std 802.3, FC-PI 13.0, RoHS-6
● Operating Case Temperature: Standard: 0~70°C; Extended: -20~85°C; Industrial: -40~85°C
● Application:
● Fast Ethernet
● Gigabit Ethernet
● 1X Fibre Channel
● SONET/SDH OC-3/STM-1
● SONET/SDH OC-12/STM-4
● SONET/SDH OC-24/STM-8

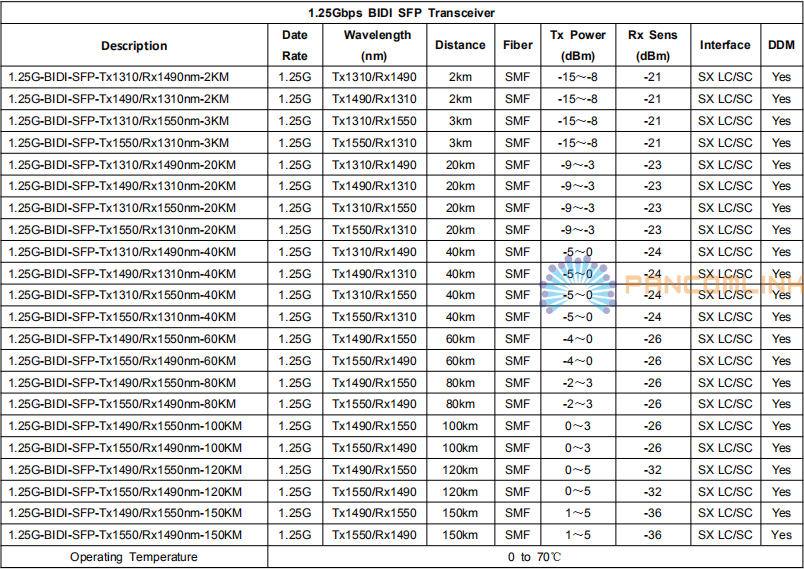

● Order Information:
